Workbench

How to start MySQL Workbench

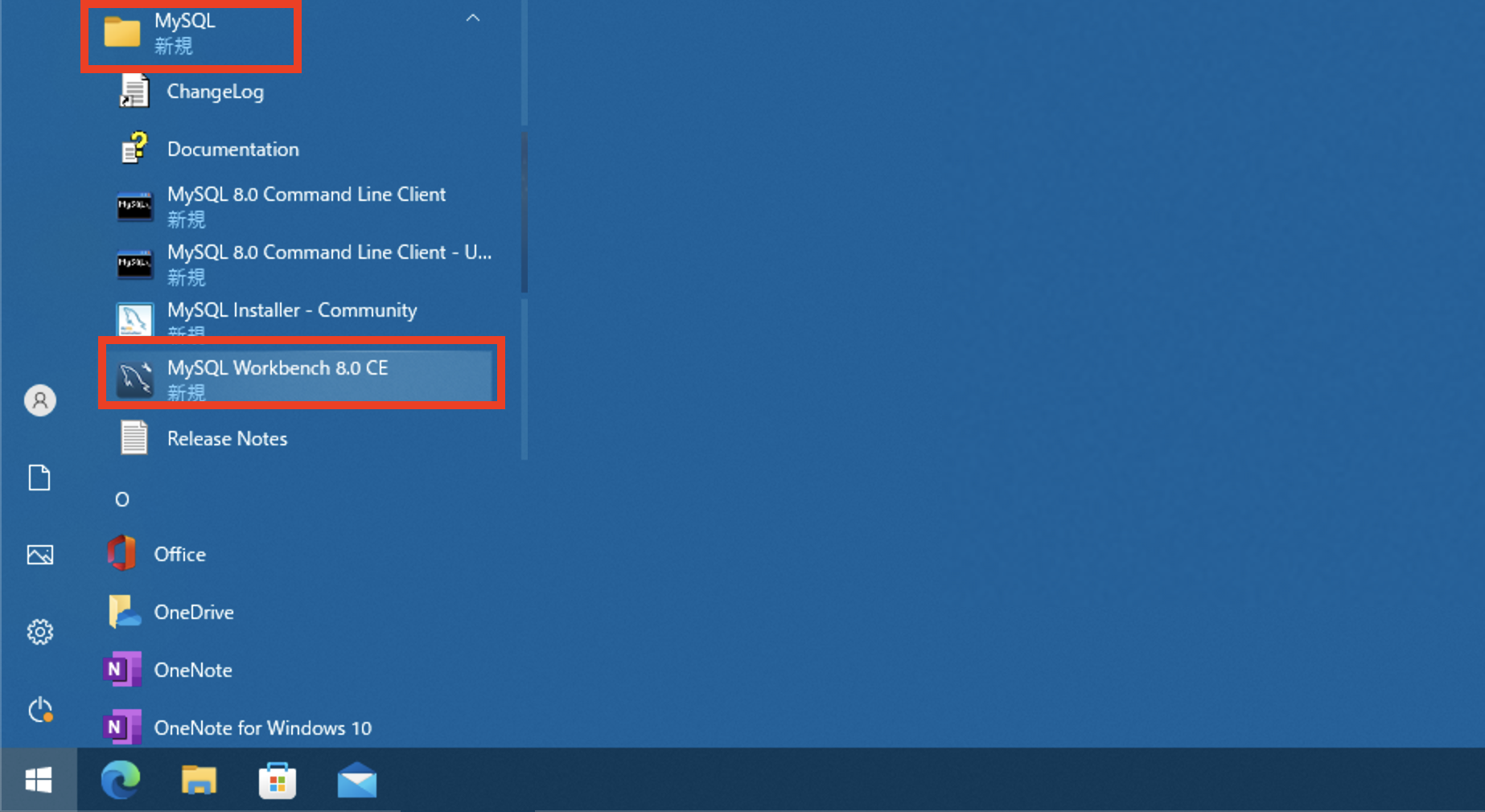

If you have already installed it, open the “MySQL” folder from the Windows Start menu with your mouse. There is a shortcut for “MySQL Workbench” in the folder, so click on it to start it.

#How to check and use Schema

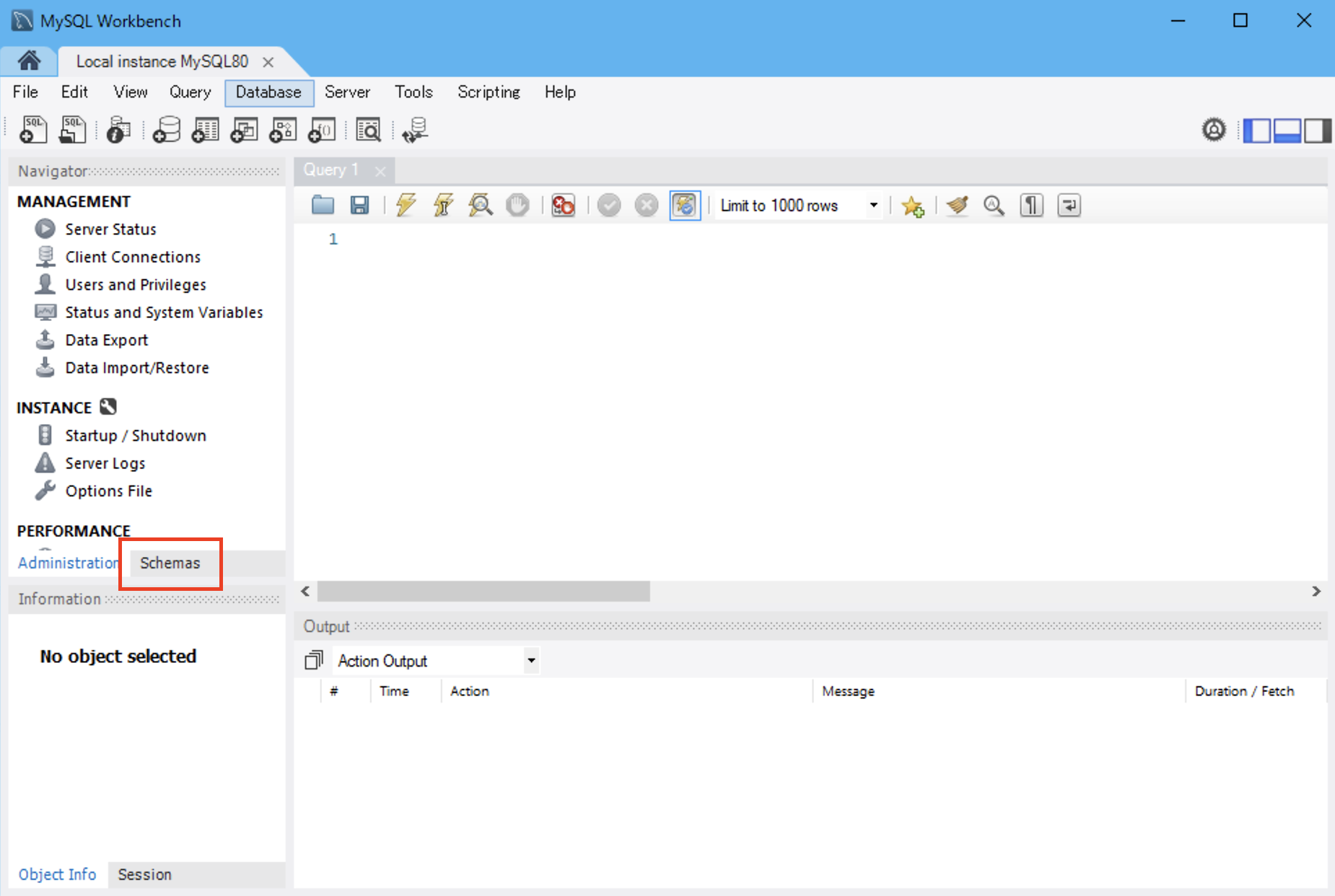

When you start MySQL Workbench, the DB may not be displayed. At startup, “Administrator” may be selected in the Navigator panel on the left side of the screen, so select the “Schemas” tab.

This allows you to display registered DBs, edit tables on DBs, etc.

Schema display update

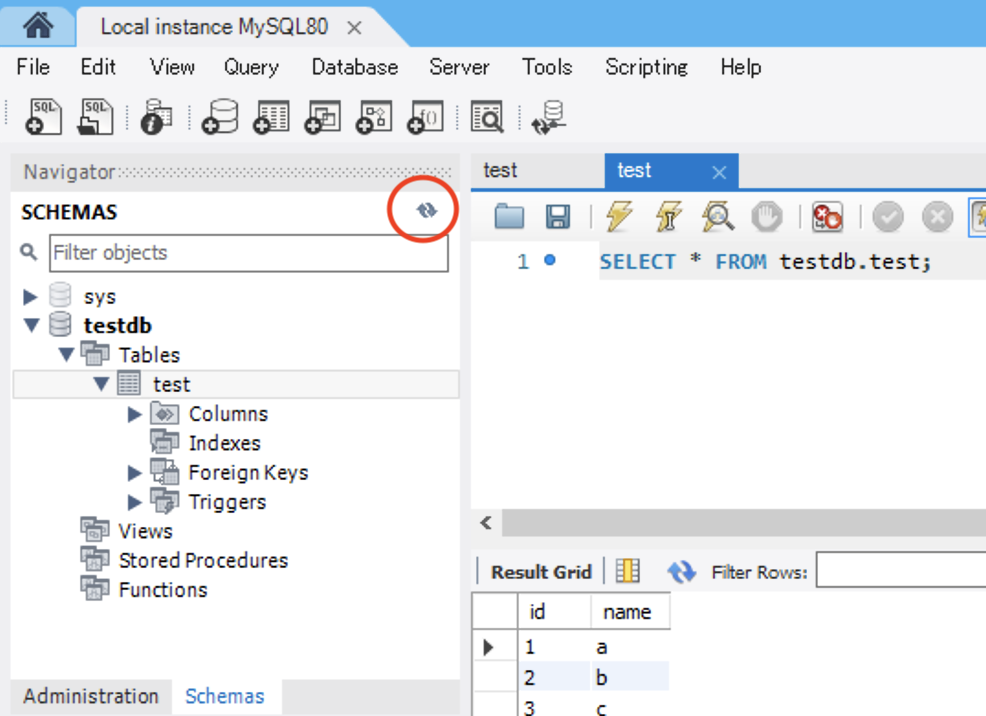

If you want to update what you see on your screen, such as when you create a table, click the small “Refresh” icon in the image below.

CSV import

The features of MySQLWorkbench’s CSV import are as follows:

• When importing into an existing table, column names and number of columns must match exactly.
• If you don’t have a table yet, you can choose to create a new one in the import wizard

Now let’s actually import it. There is already a table called test in the DB, and we want to add 3 records to it in the text.csv file.

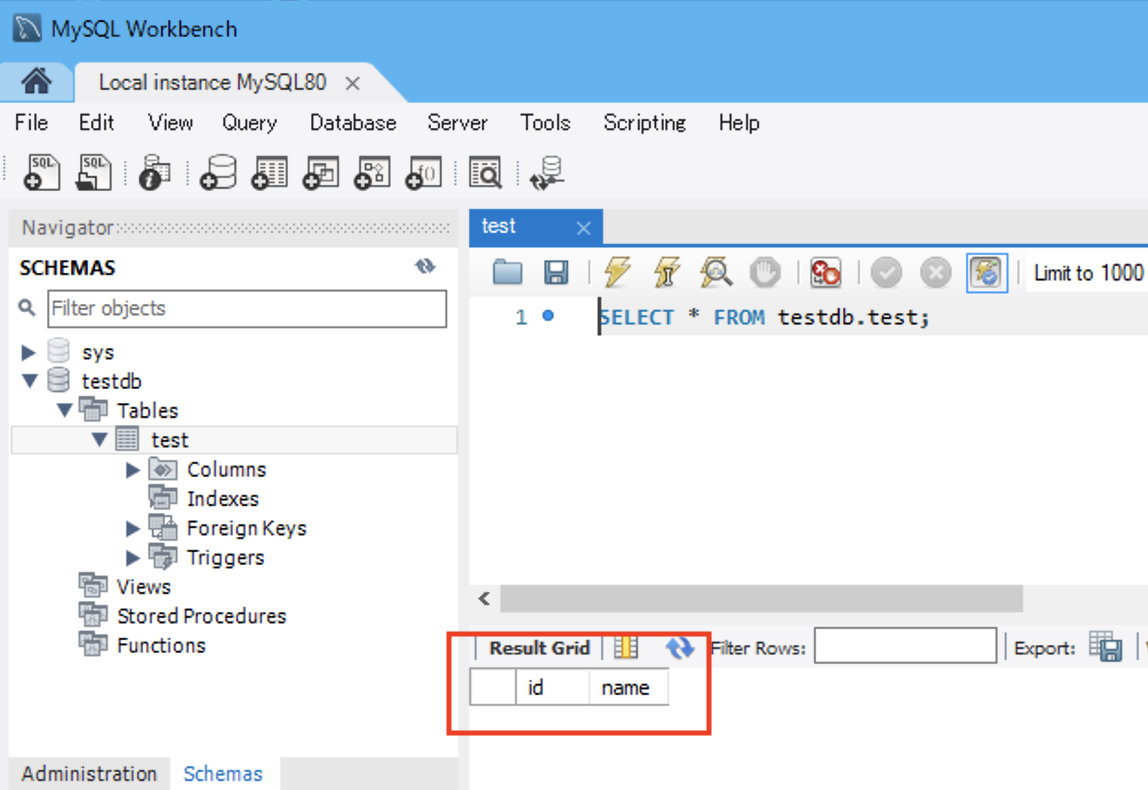

There are no records in the test table.

Right-click the table name you want to import (here test) and select “Table Data Import Wizard”.

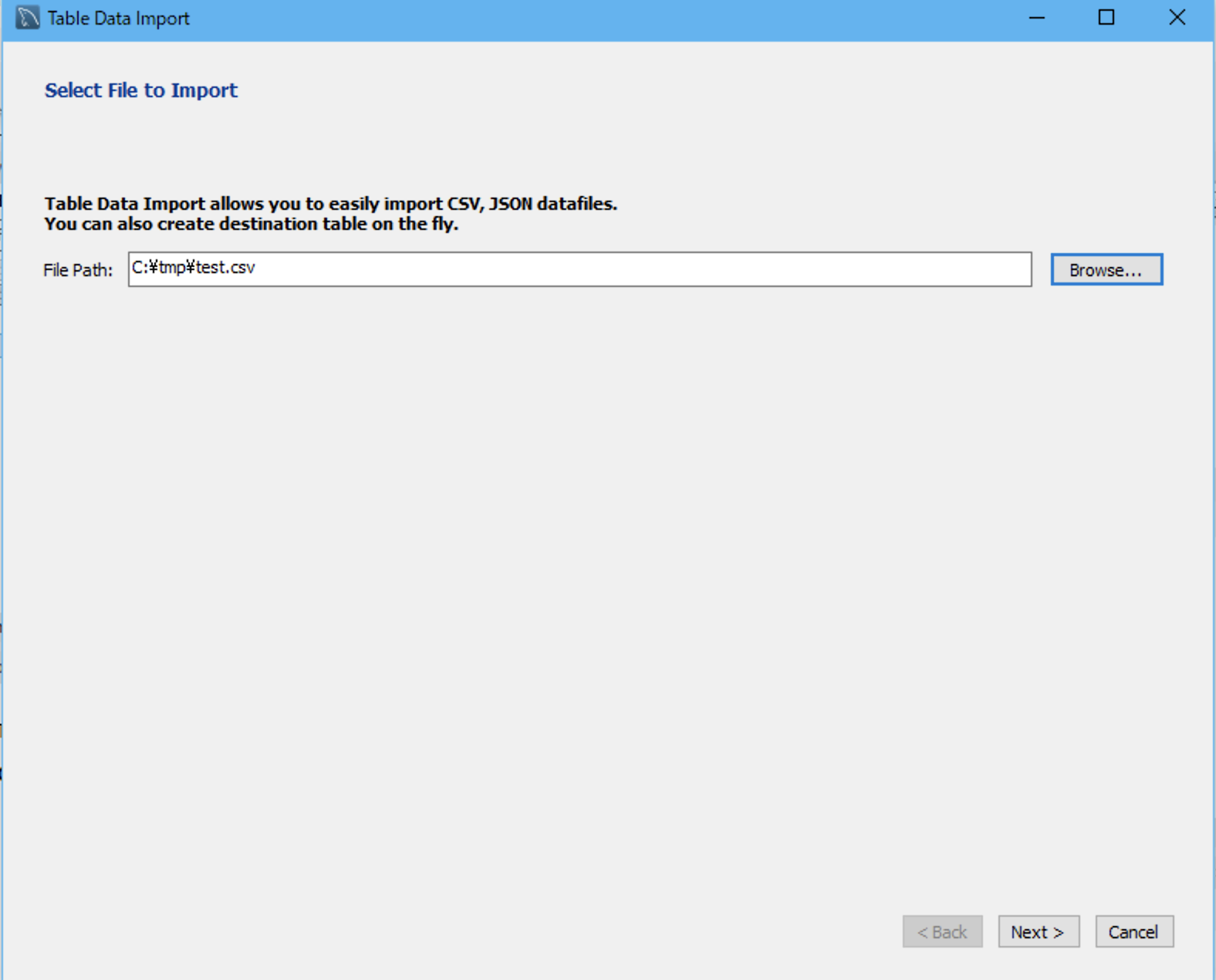

A dialog will appear, select the file to import and select “Next”.

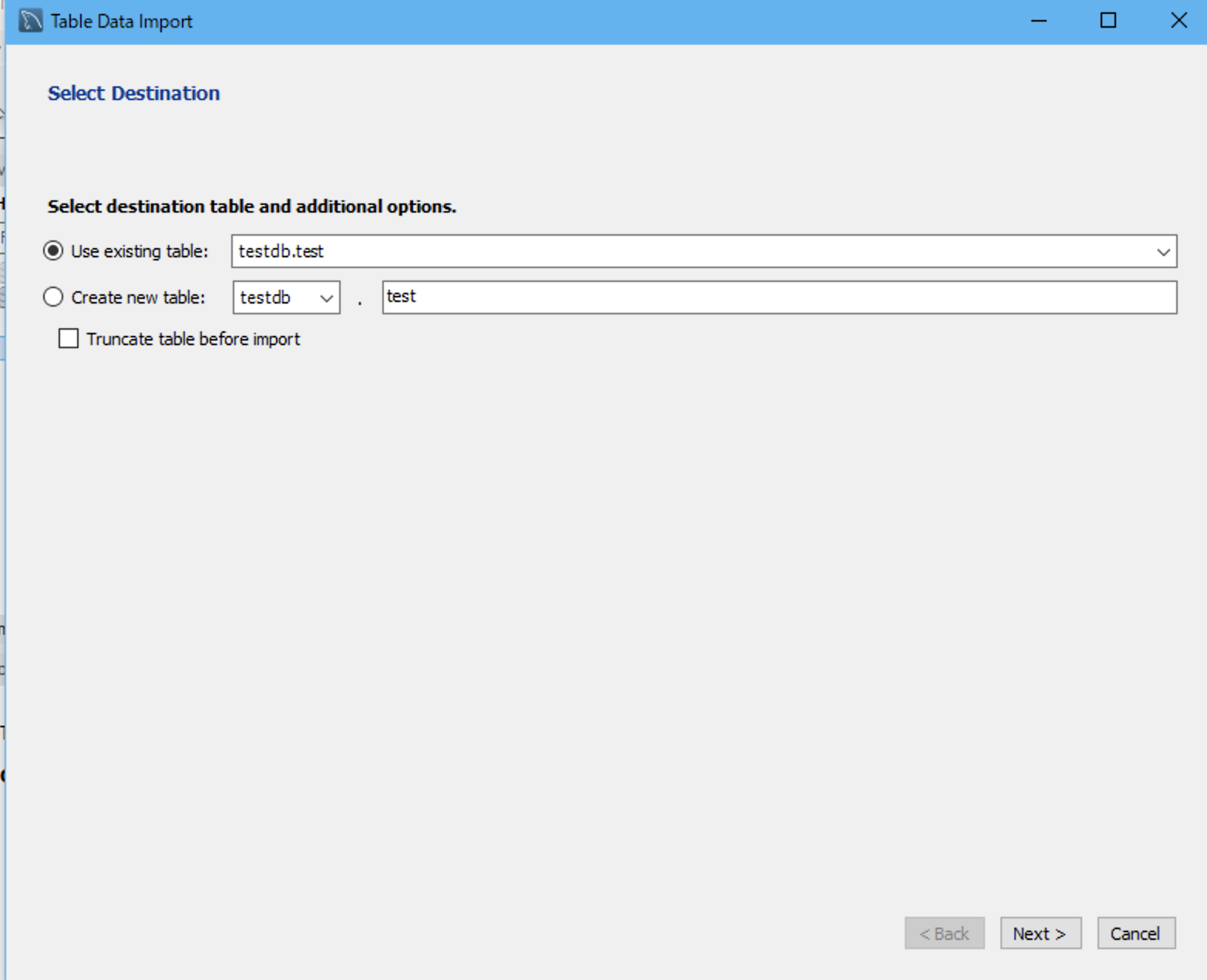

Select whether to add data to an existing table or create a new table and import data into it.

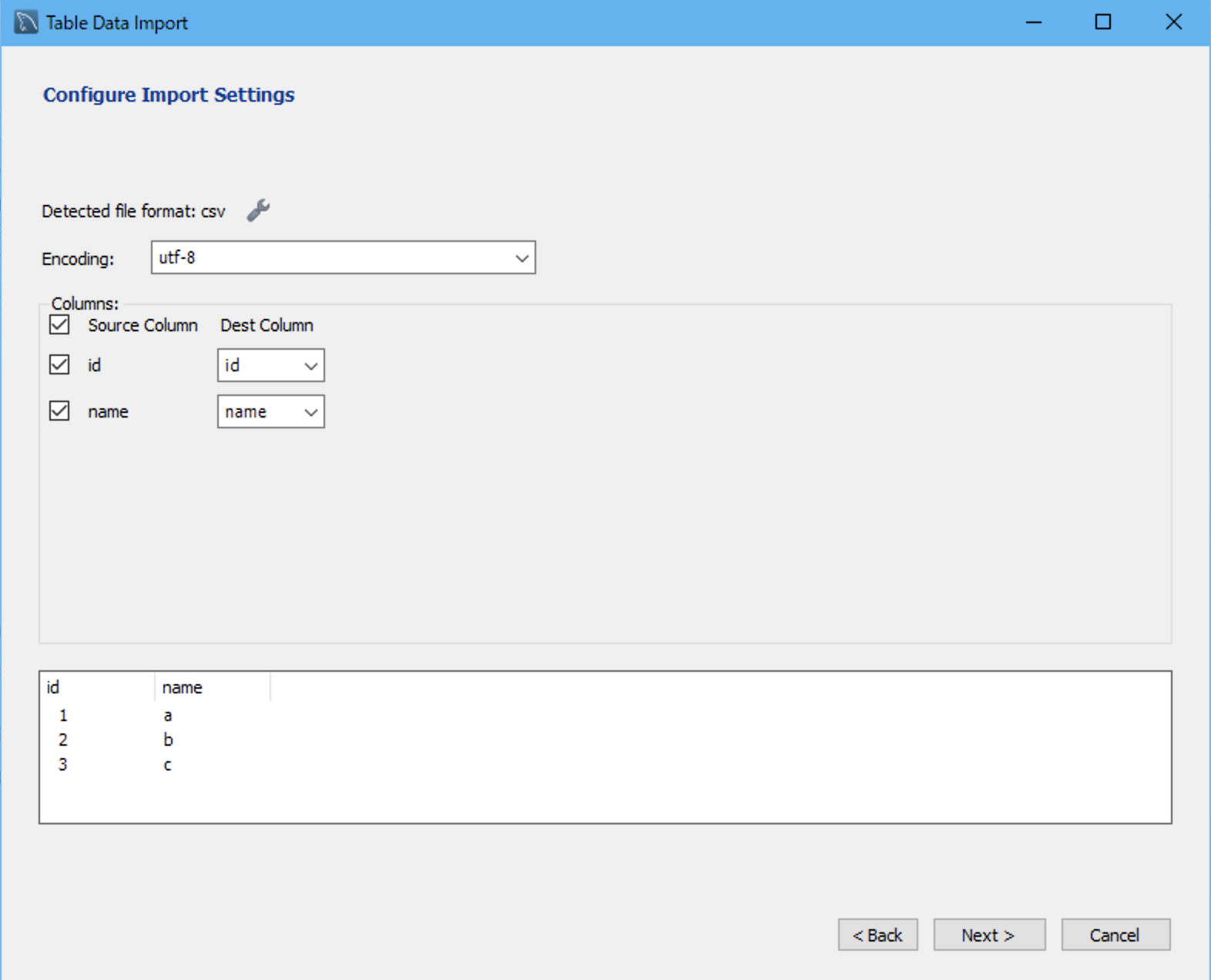

Configure settings such as whether to include column names when importing.

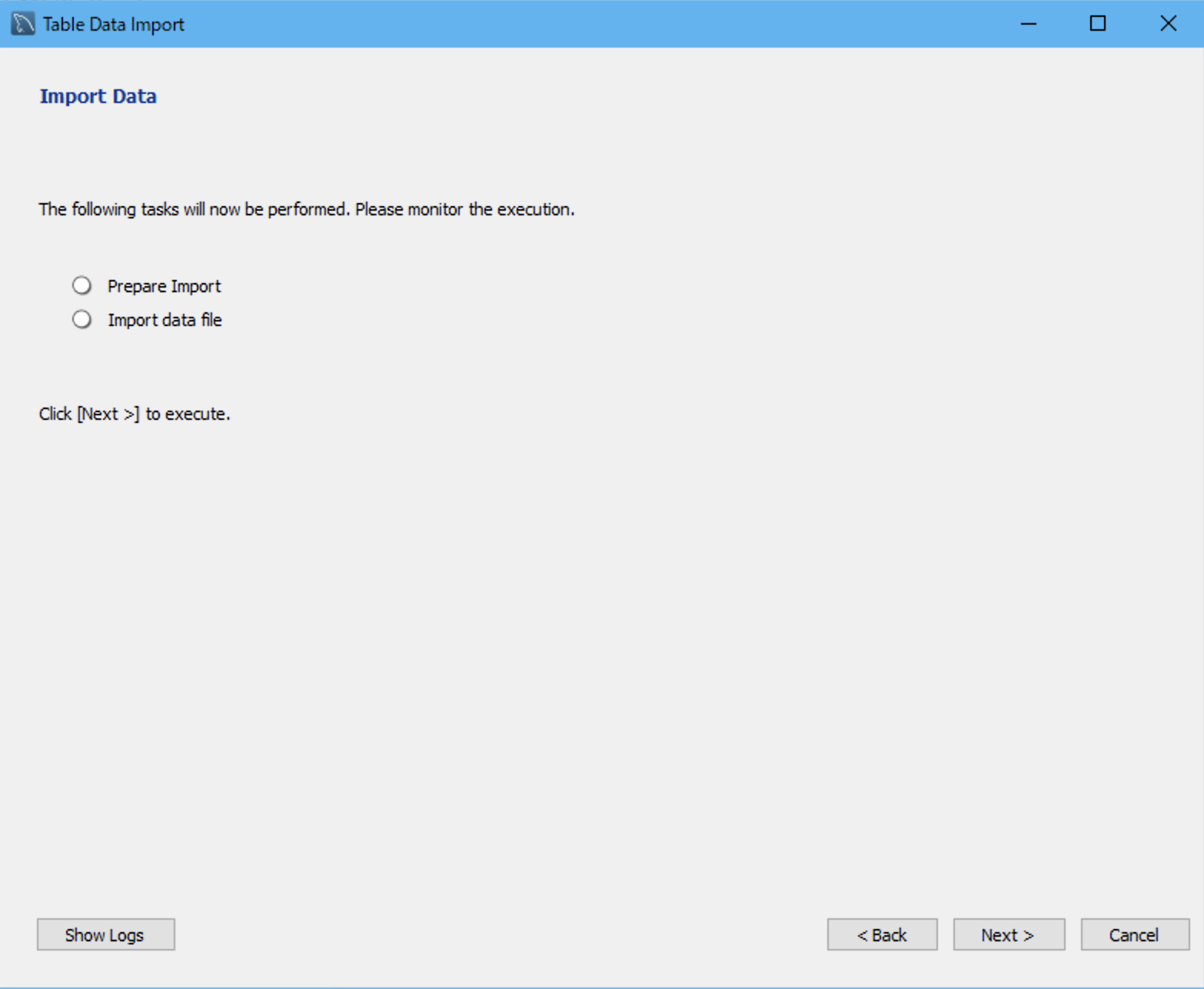

A confirmation screen will appear, allowing you to proceed to the next step.

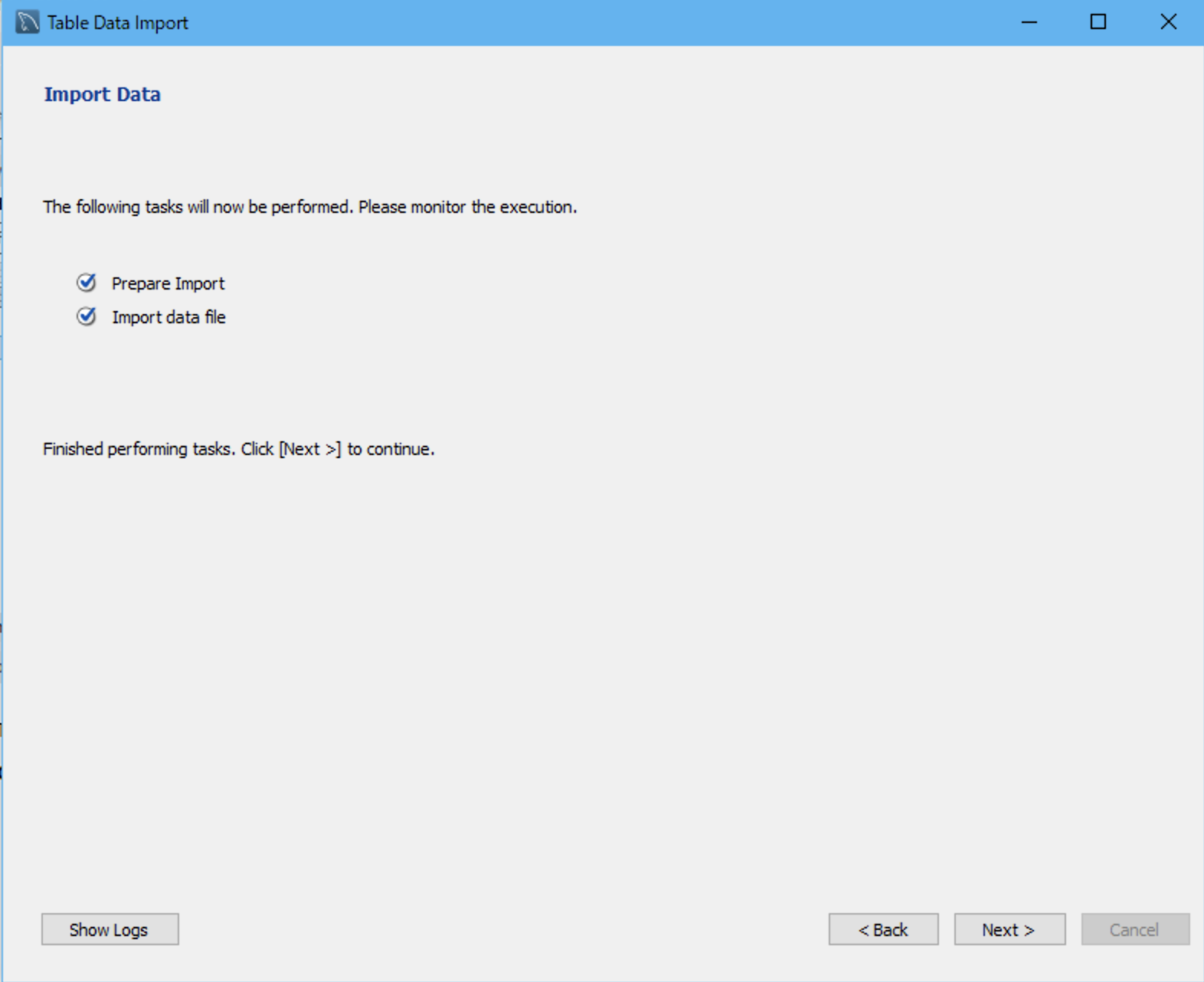

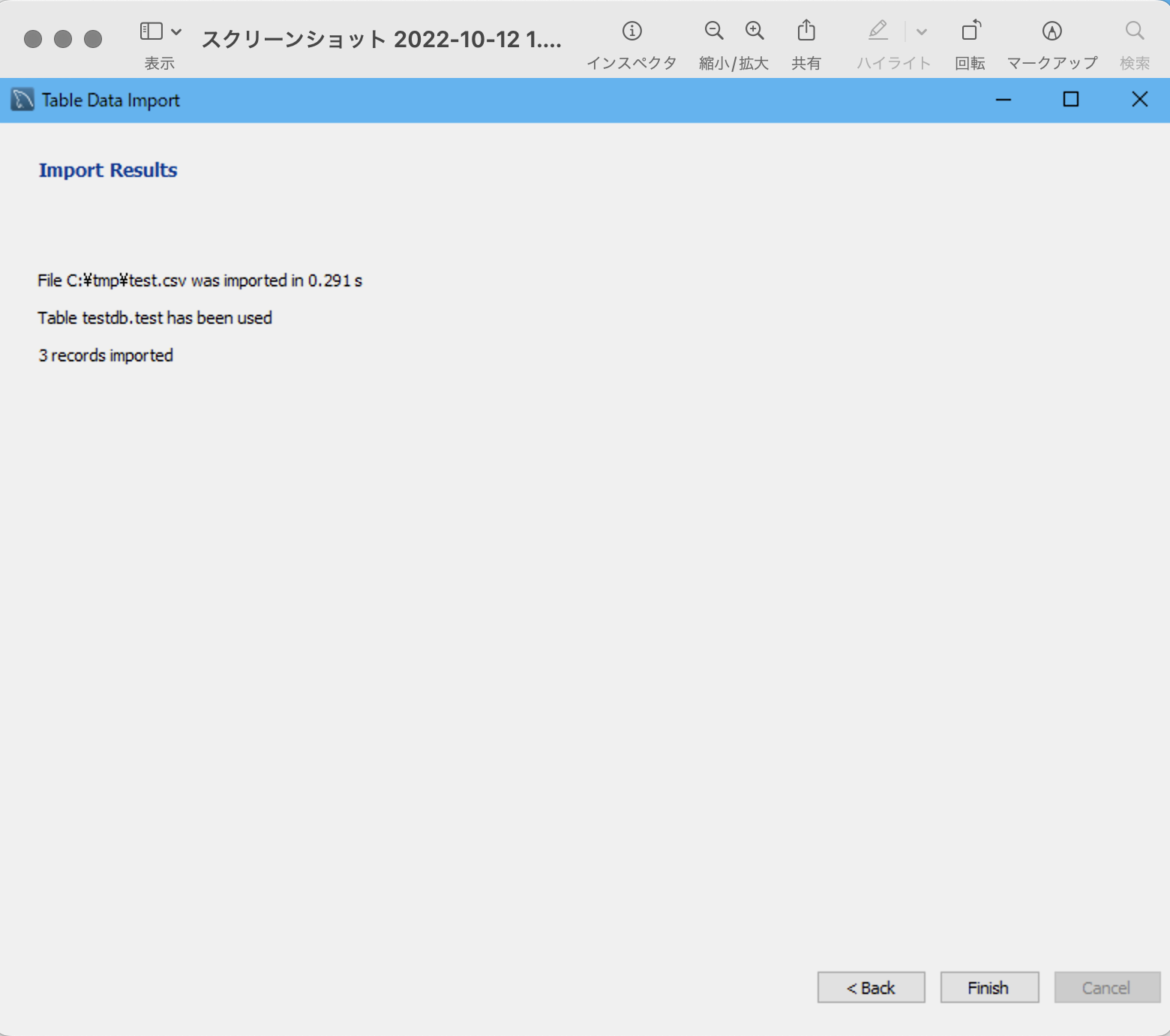

After executing the import, a results screen will be displayed. Press “Finish” to close the screen.

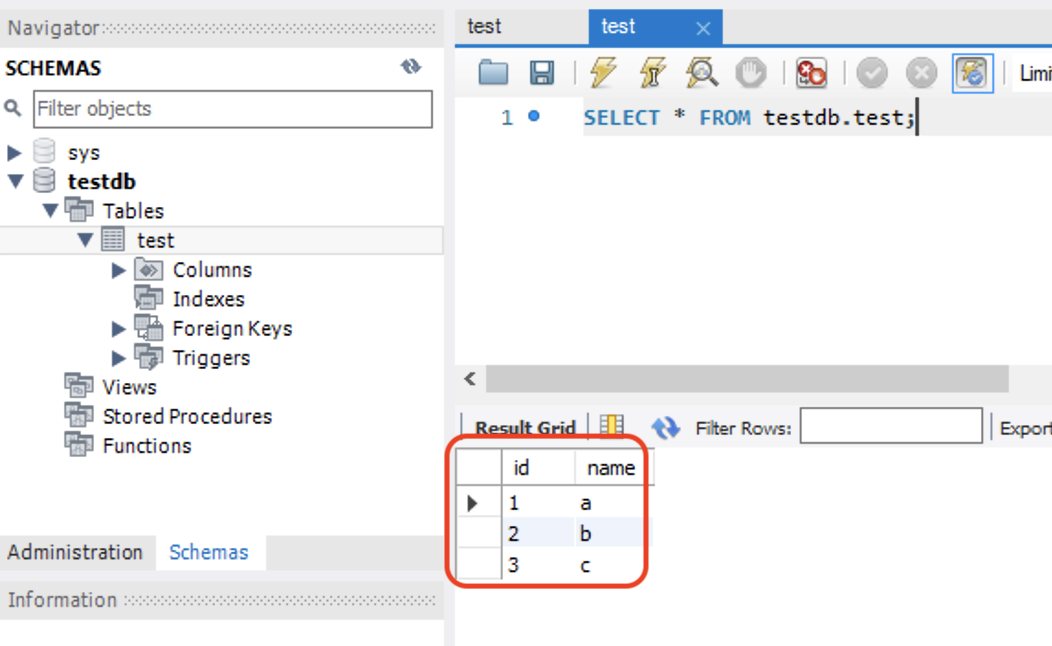

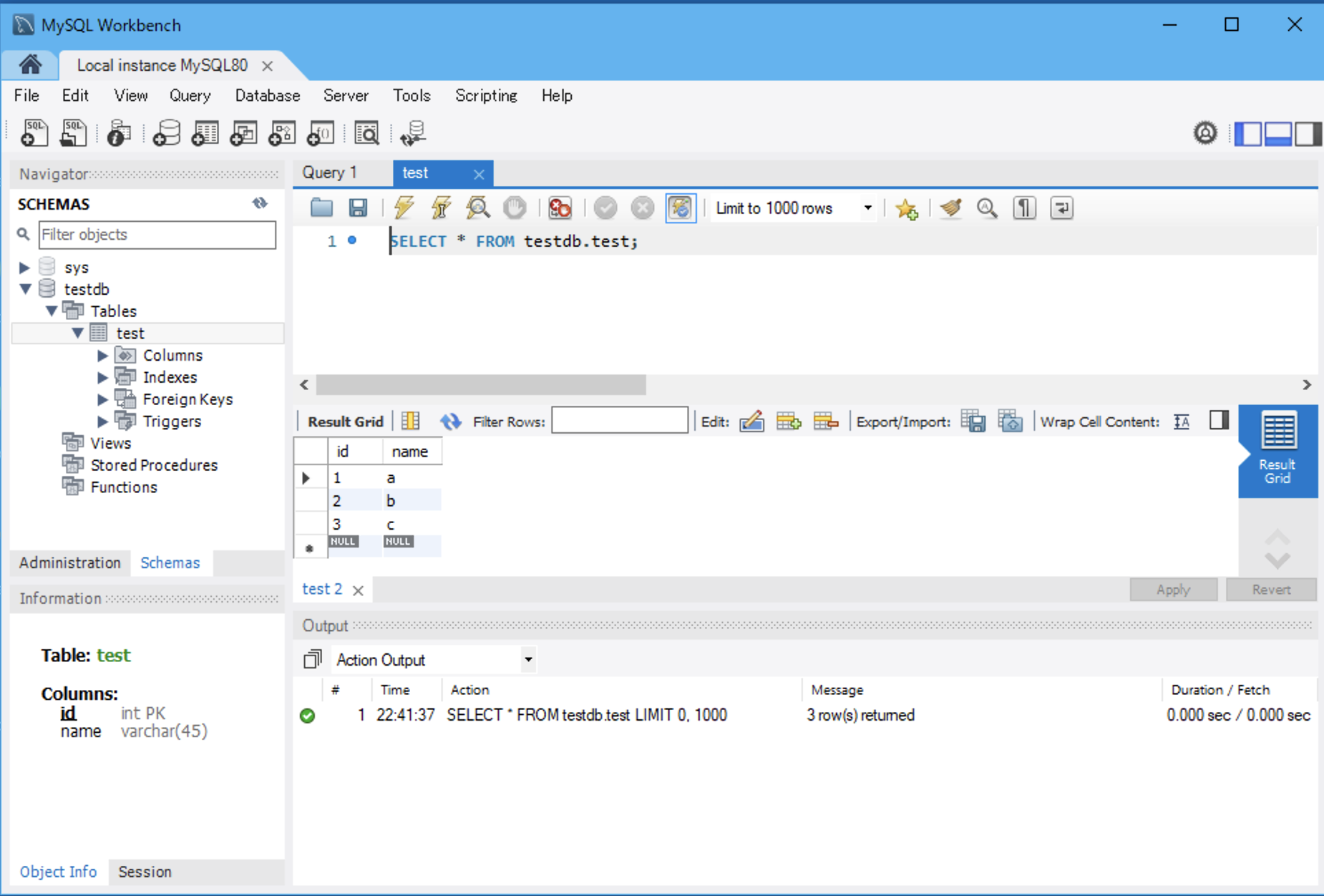

You can see the imported data by reviewing the table.

CSV export

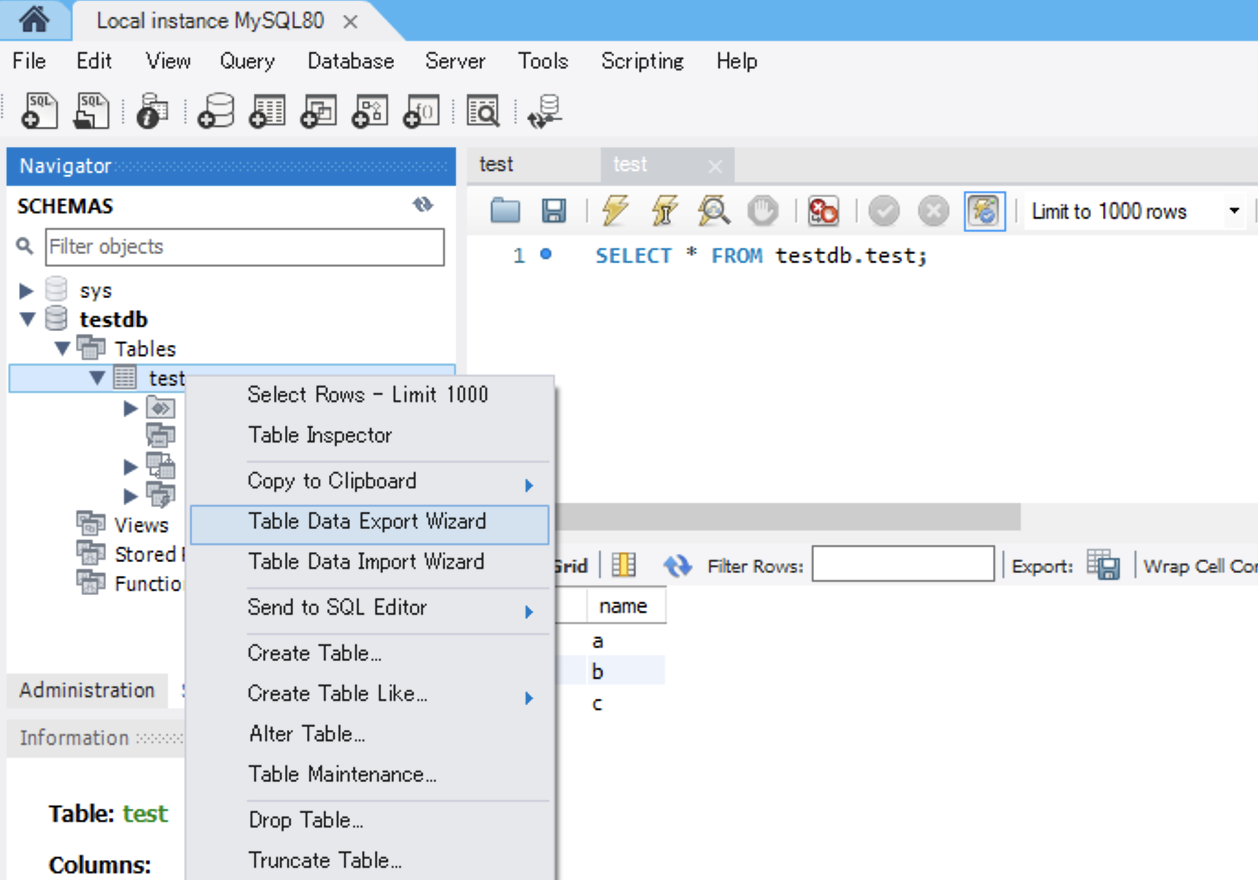

To export table data to a CSV file, right-click the table and run “Table Data Export Wizard”.

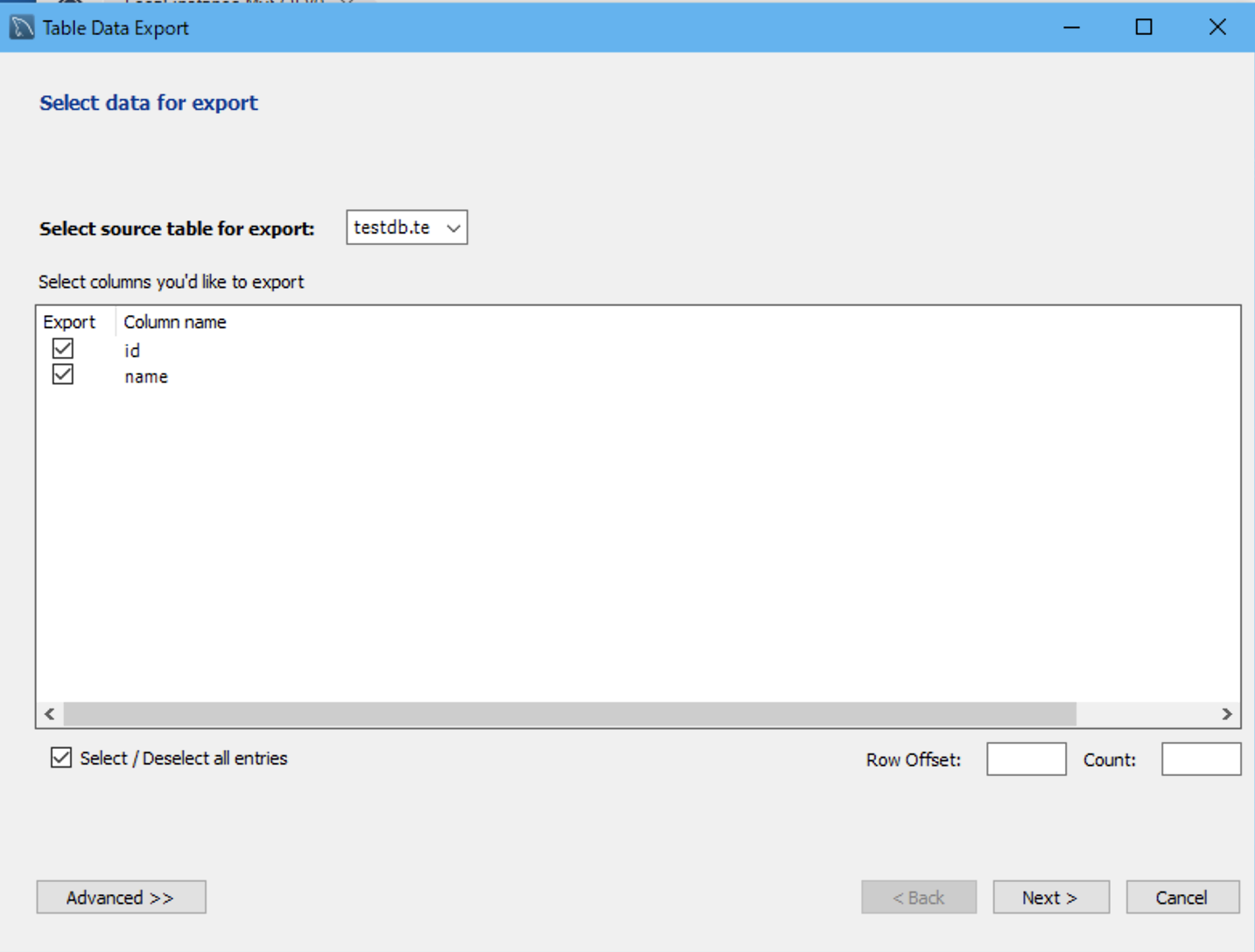

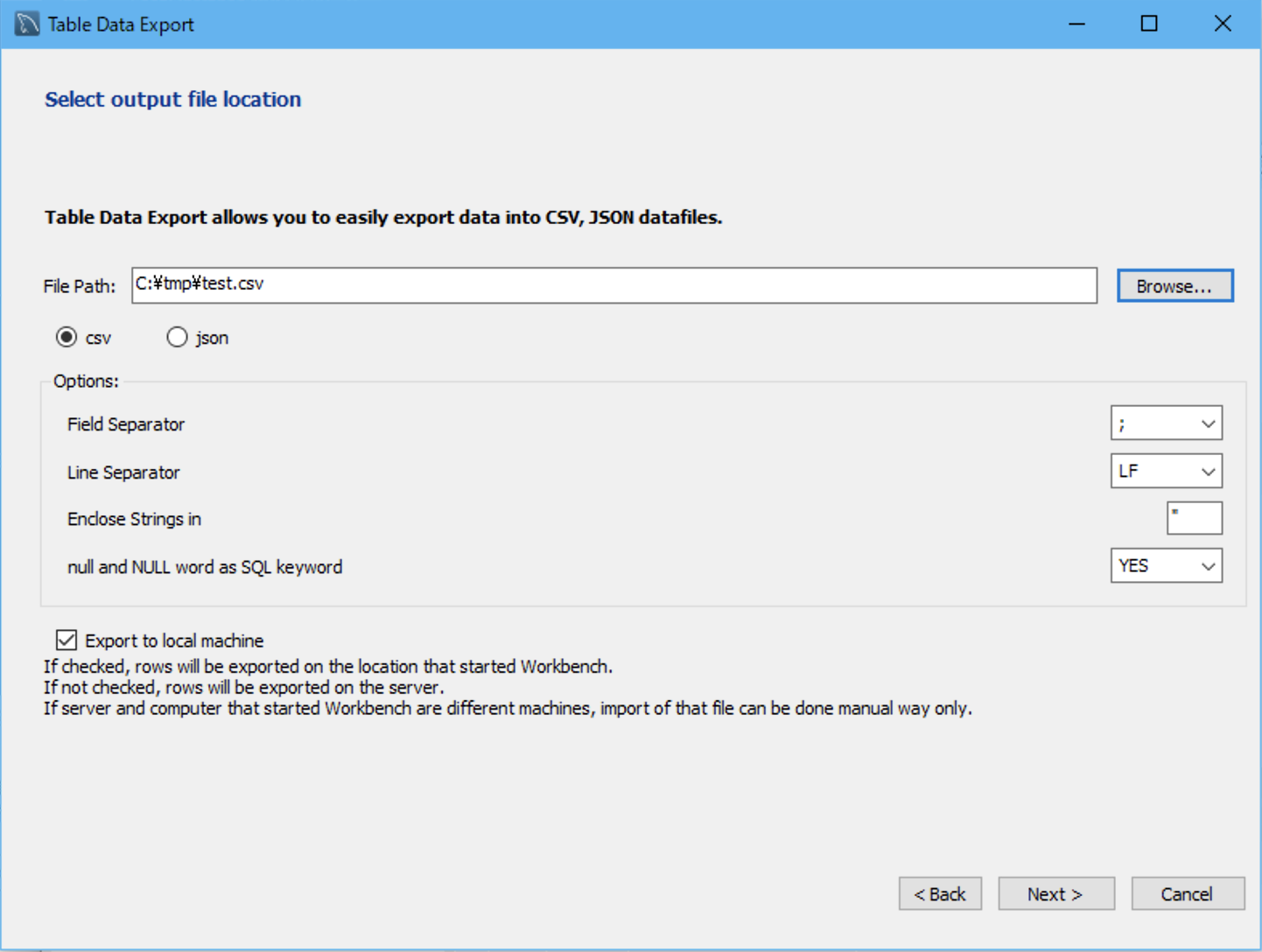

Select the output column. Specify the output file, etc.

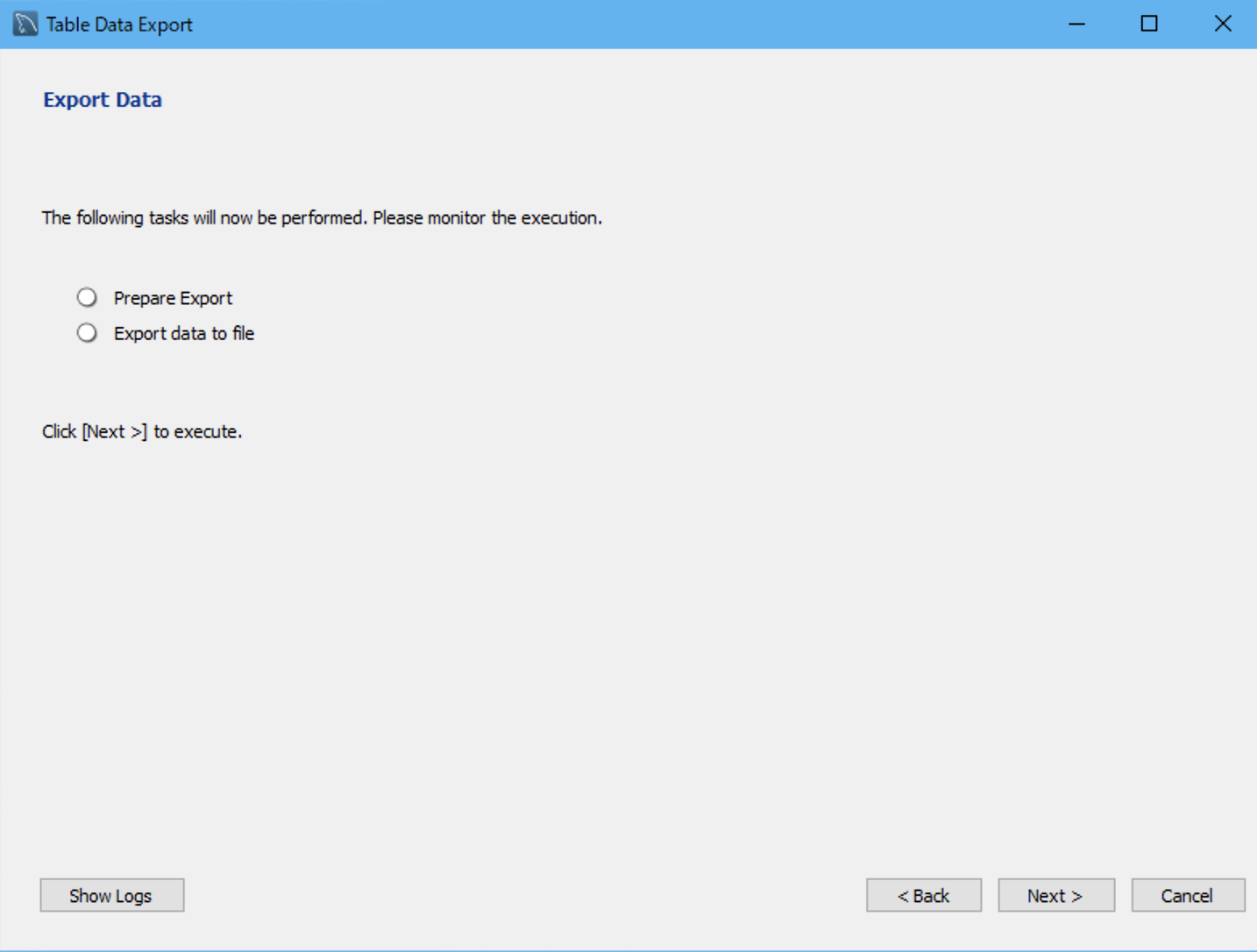

Execute the process.

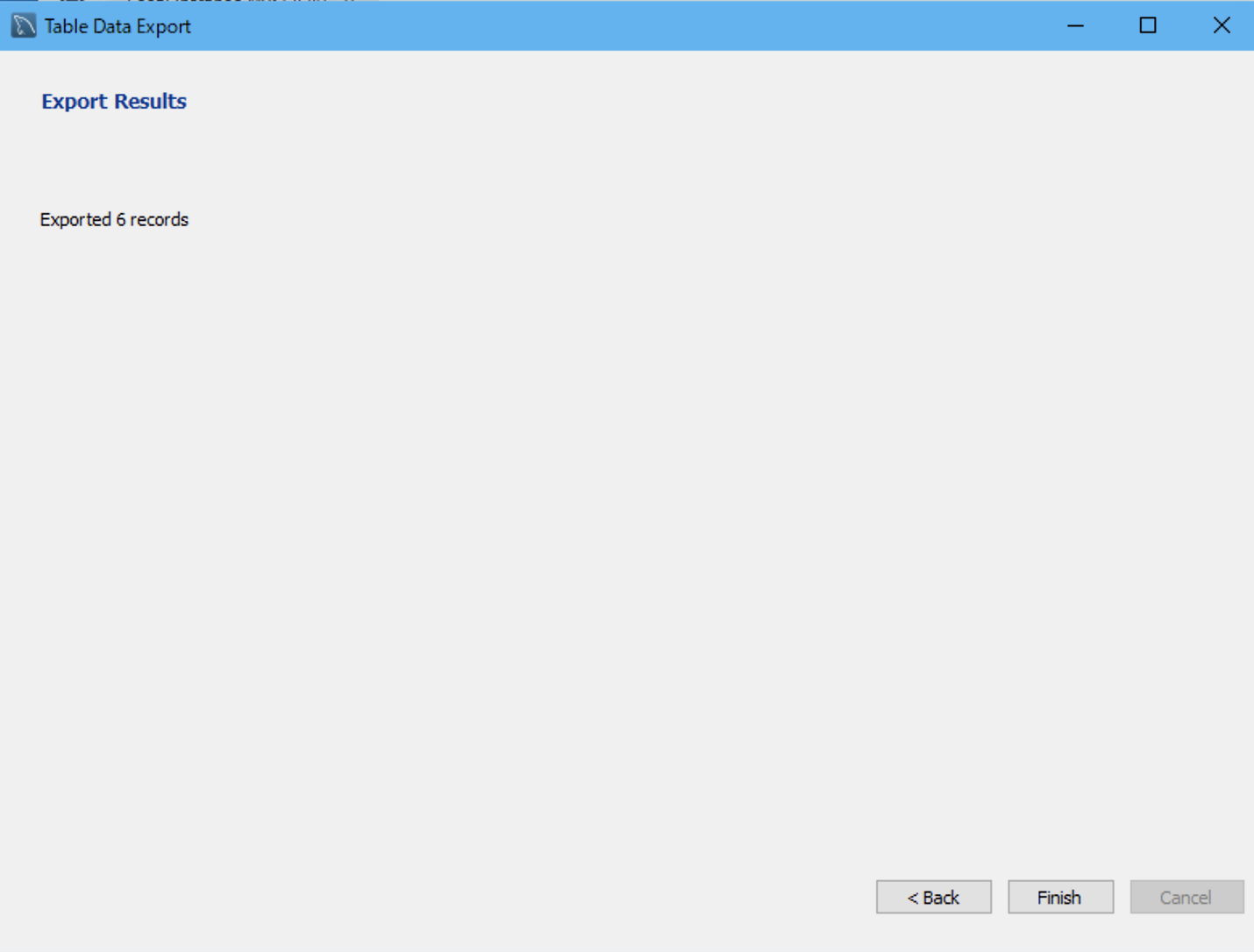

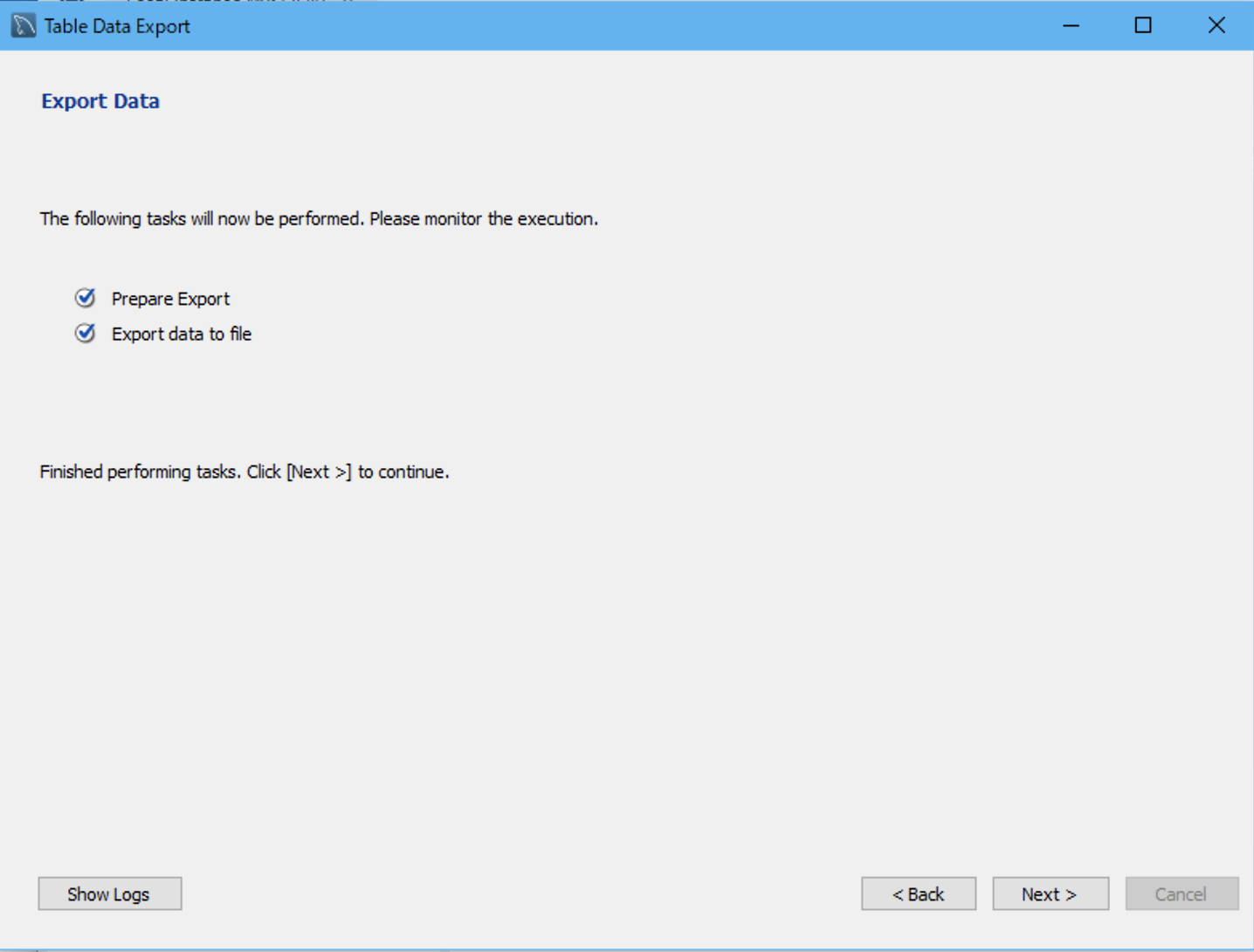

Processing completed.

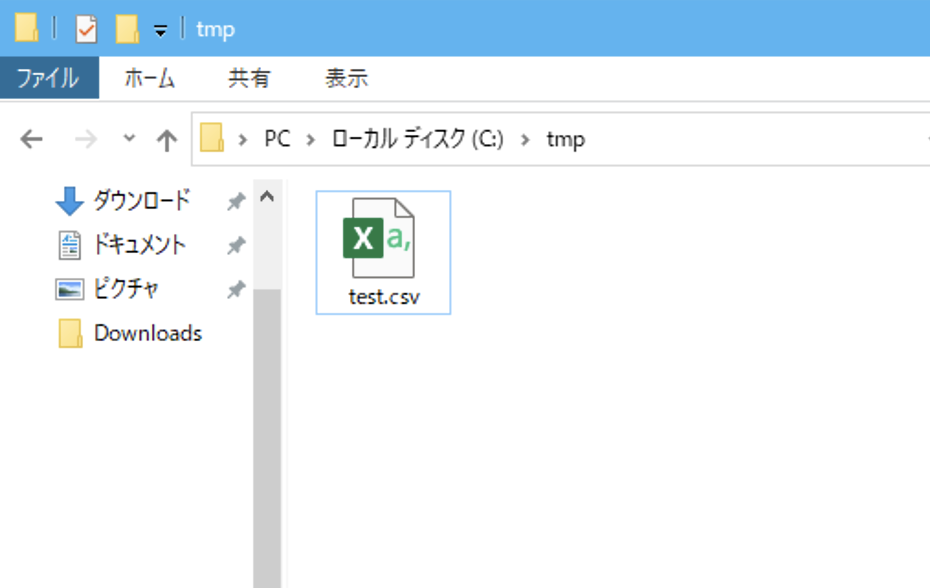

The CSV file is output to the specified location.
